MPR video Connection

Modified on Thu, 12 Jan, 2023 at 11:05 AM

In the MPR room look for the Extron control system

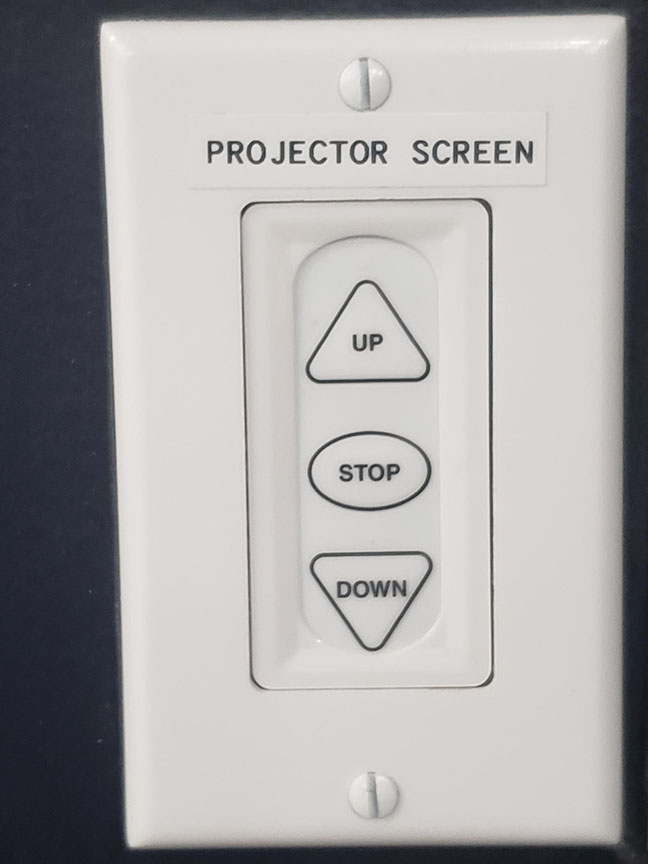

Go to Projector Screen and press the DOWN button (Press once)

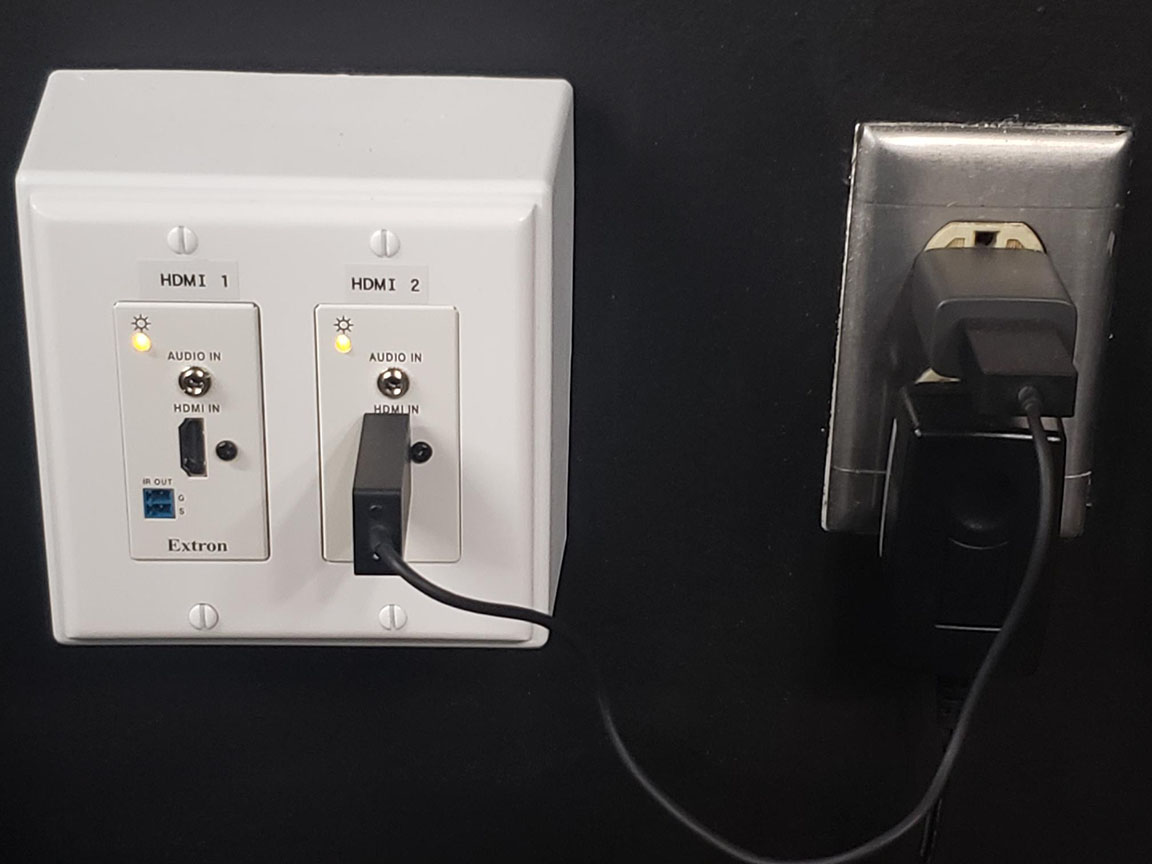

You will see HDMI 1 and HDMI 2 inputs towards lower section of the wall

If you see a black USB in the HDMI 1 then go to the Extron control board and select HDMI 1

If you see a black USB in the HDMI 2 then go to the Extron control board and select HDMI 2

   turn Display to ON

   select the HDMI 1 button (it will light up)

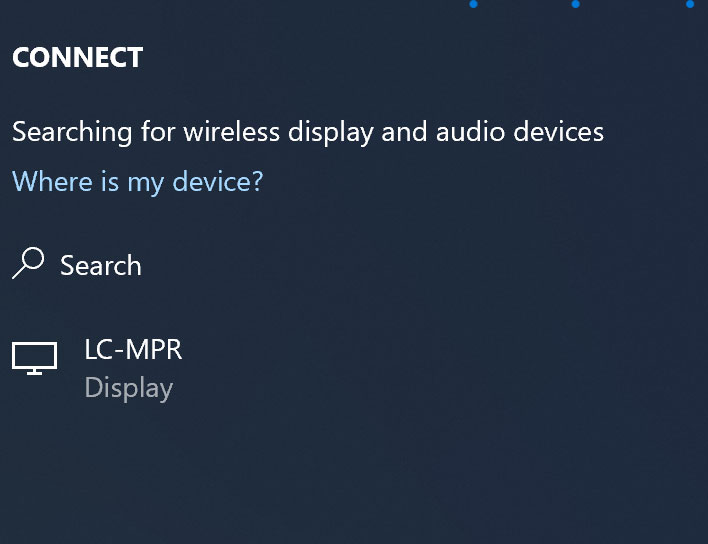

 To connect from your surface enter WIndow Key and then "K" and this dialog box will appear on the right side

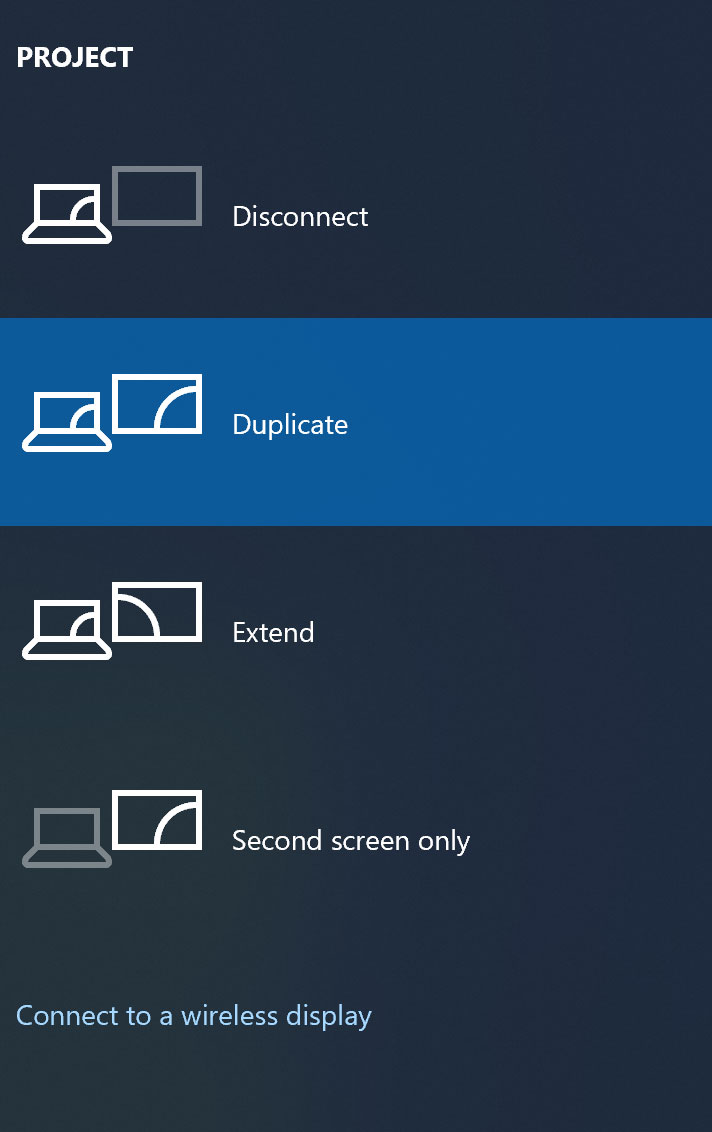

then choose projection type: Duplict


Your Surface will connect to the Projector and display your surface screen

You can adjust the Main Volume from the Extron control box

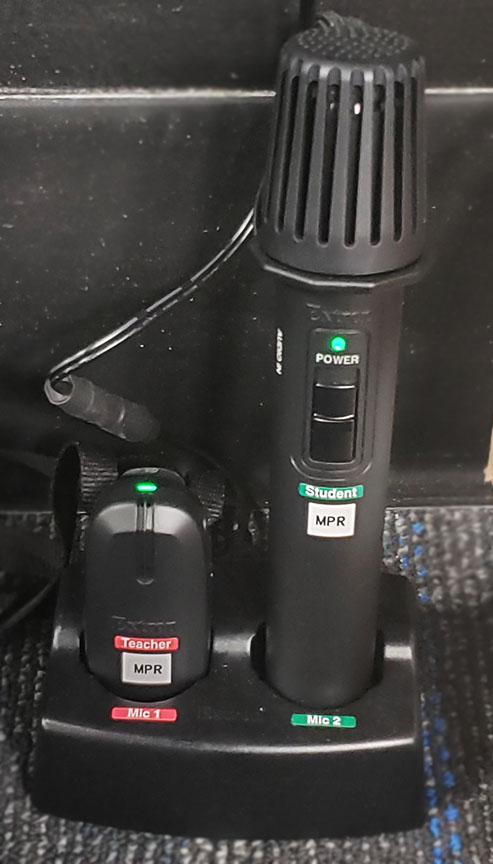

There are 2 microphones 1 handheld and 1 wearable mic in the charging cradle

(which may be stored by the Extron control board or in the office )

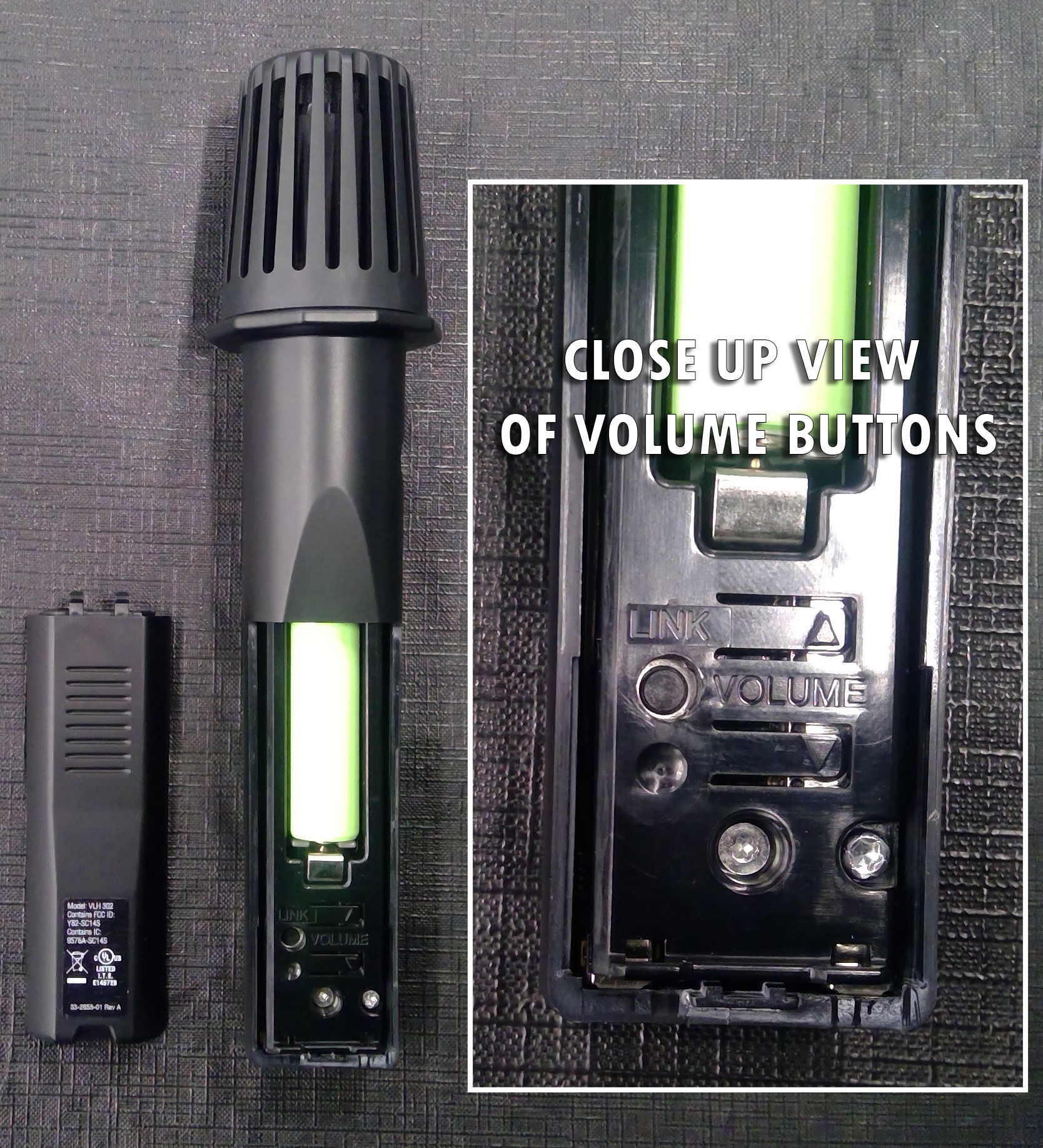

To adjust the hand held microphone gain/volume you have to on the backside slide down the access panel

and push the volume UP and mic test to desired volume level and then slide back on the access panel


When you are done with your presentation, you can select disconnect at top of your screen.

Go to the Extron control box and

    Projector screen up (Press once)

   Display OFF light will flash RED then go to steady RED
